PROGRESSIVE CAVITY (CK 2000 & CG)

continental logo

The CK 2000 & CG Models are designed to handle the heavier applications of sewage, industrial waste, polluted liquids and slurries. Incorporated into this more rugged pump is a drive train using crown gear joint connections to the rotor and drive shaft.

Standard Materials Used

Cast Iron & Stainless-Steel Pump Housings

Alloy and Stainless-Steel Rotors

Buna, Viton, EPDM, Natural Rubber & HNBR Stators

Carbon & Stainless-Steel Internal Parts

CK 2000

CK 2000

Standard Materials Used

Cast Iron & Stainless-Steel Pump Housings

Alloy and Stainless-Steel Rotors

Buna, Viton, EPDM, Natural Rubber & HNBR Stators

Carbon & Stainless-Steel Internal Parts

CG Model

Applications

Sewage Transfer

Wastewater

Slurry Mixes

Crude Oil

Bio Diesel

Produced Water

And Many More

INDUSTRIES SERVED

WATER & WASTEWATER

AGGREGATE & CEMENT

POWER GENERATION

PULP & PAPER

OIL & GAS

GENERAL INDUSTRIES

Model Features

Progressive Cavity (CK 2000)

Sealed Gear Joint Connection

Exceptional Abrasion Resistance

Modular Design

Large Selection of Drive Ends

Ability to Rotate the Suction Housing

Discharge Flange Connection

Self-Priming with Suction Lift Up to 28 Ft (Based on Water)

Positive Displacement & Non-Pulsating Flow

Handles Sheer-Sensitive Materials with No Agitation

Pumps Foreign Materials with Particle Sizes Up to 2” Diameter

Flow Rate: 4 – 2300 GPM

Maximum Pressure: 780 PSI

Progressive Cavity (CG)

Sealed Gear Joint Connection

Rugged Design

ANSI Flanges

Handles Heavier Applications

Flow Rate: 2 – 380 GPM

Maximum Pressure: 225 PSI

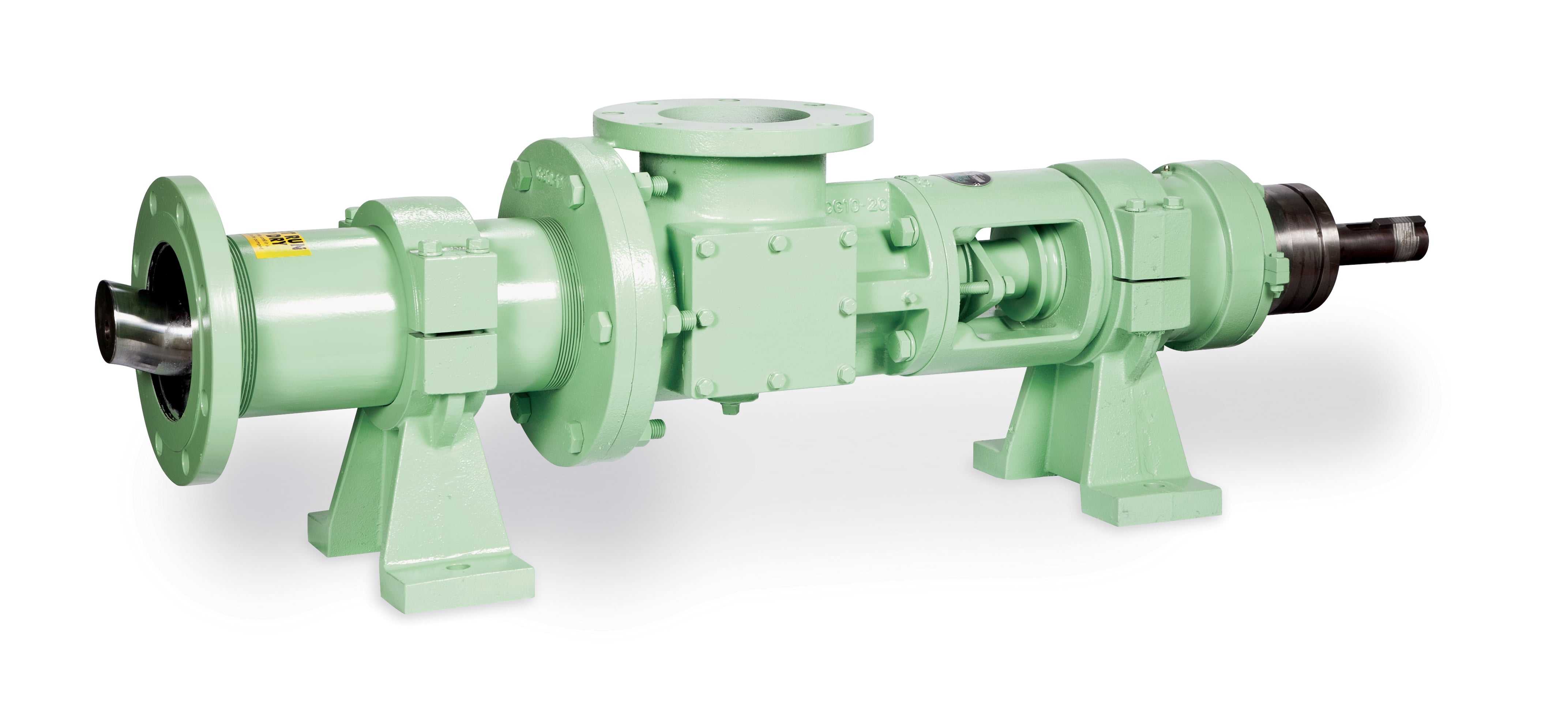

1CG10H-min

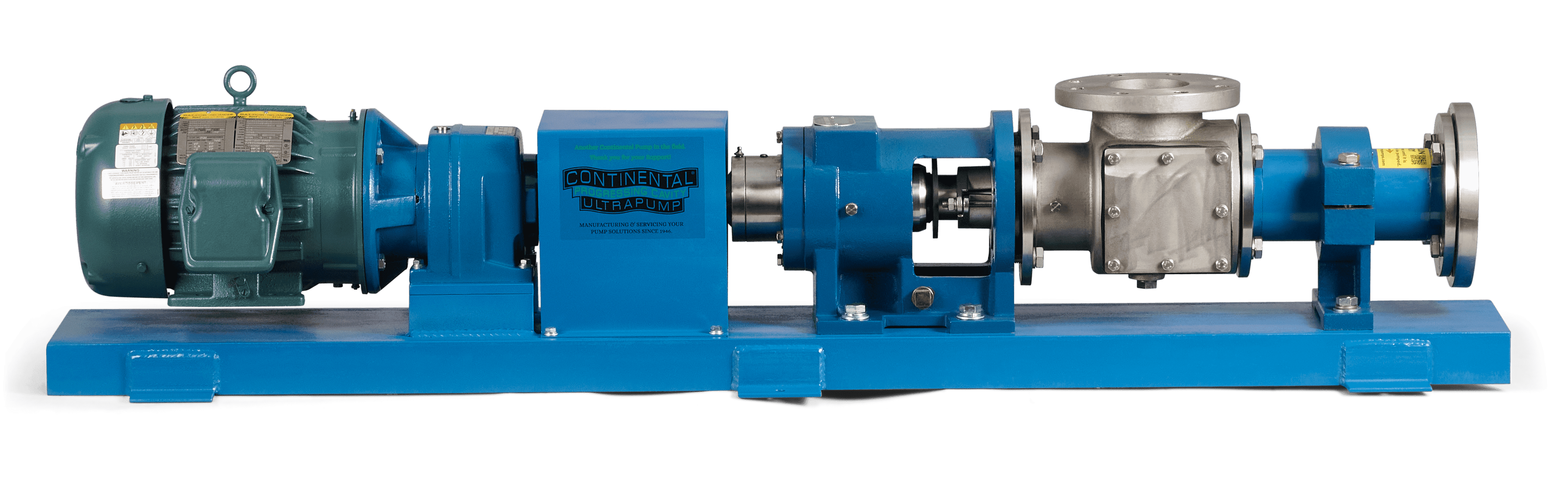

1E012-min

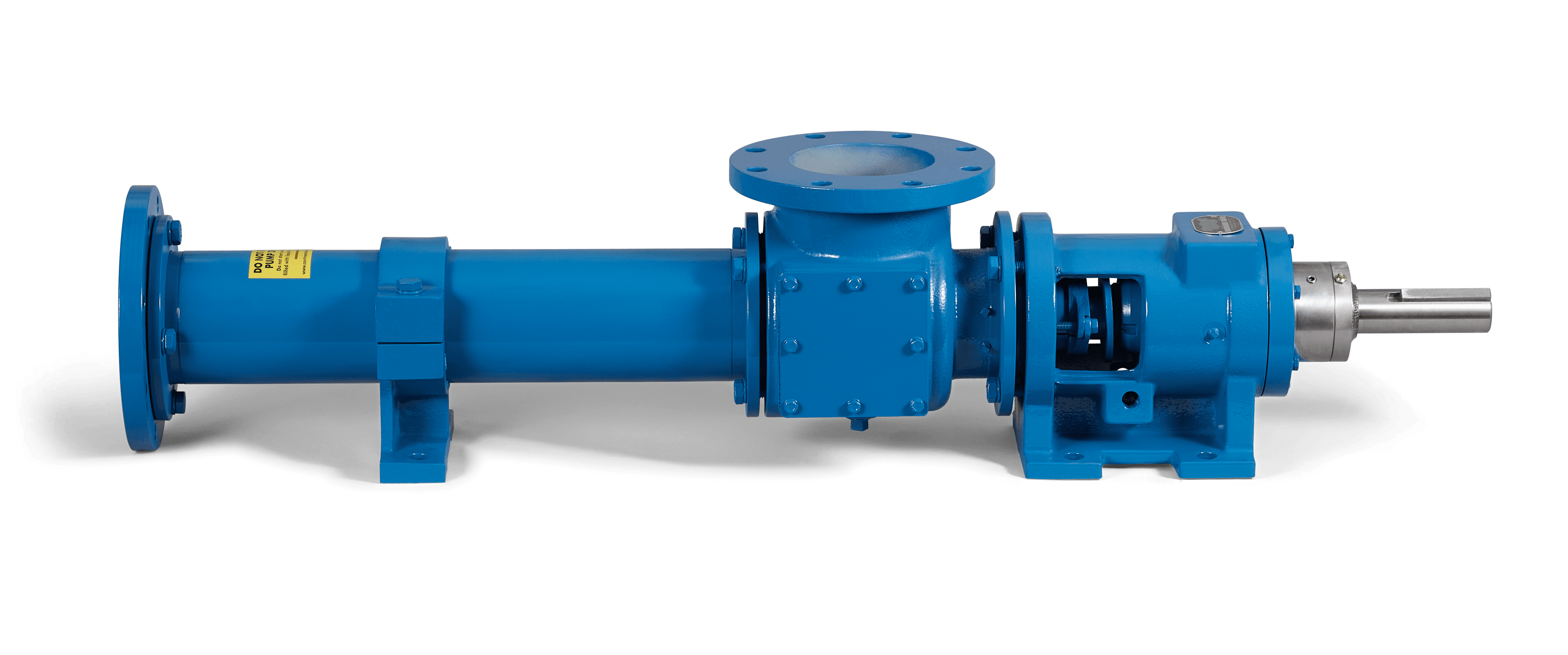

2E022G1-CDF-min
2G065G1-SSQ-min

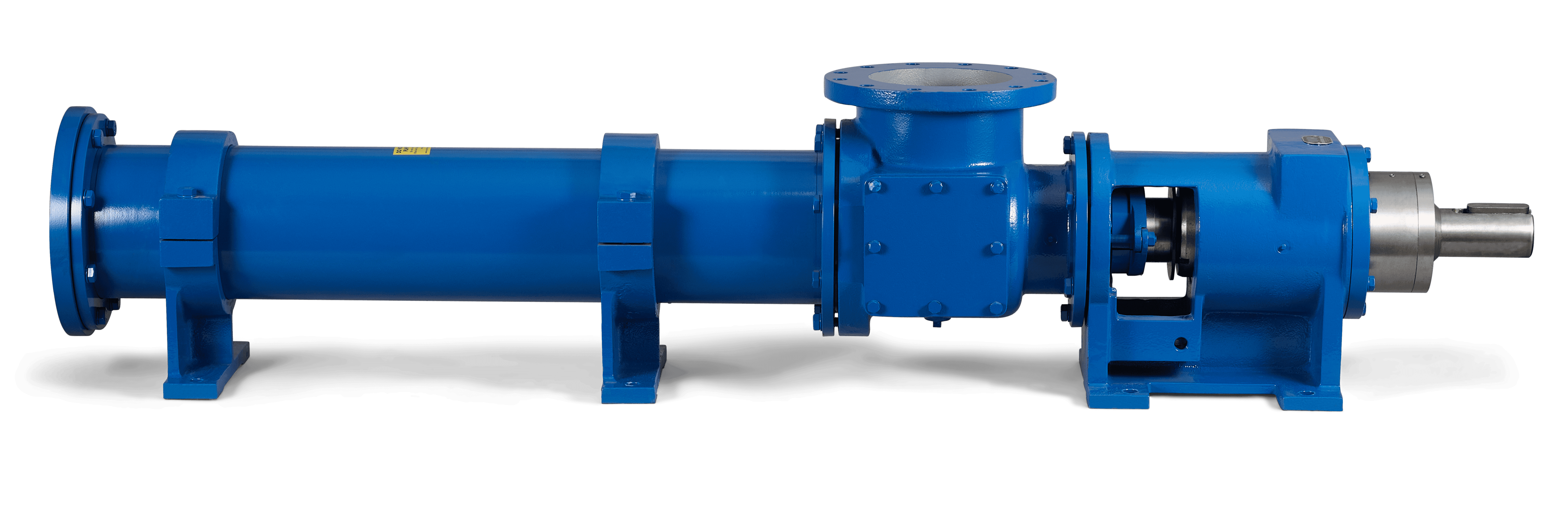

2J175G1-CDQ-min

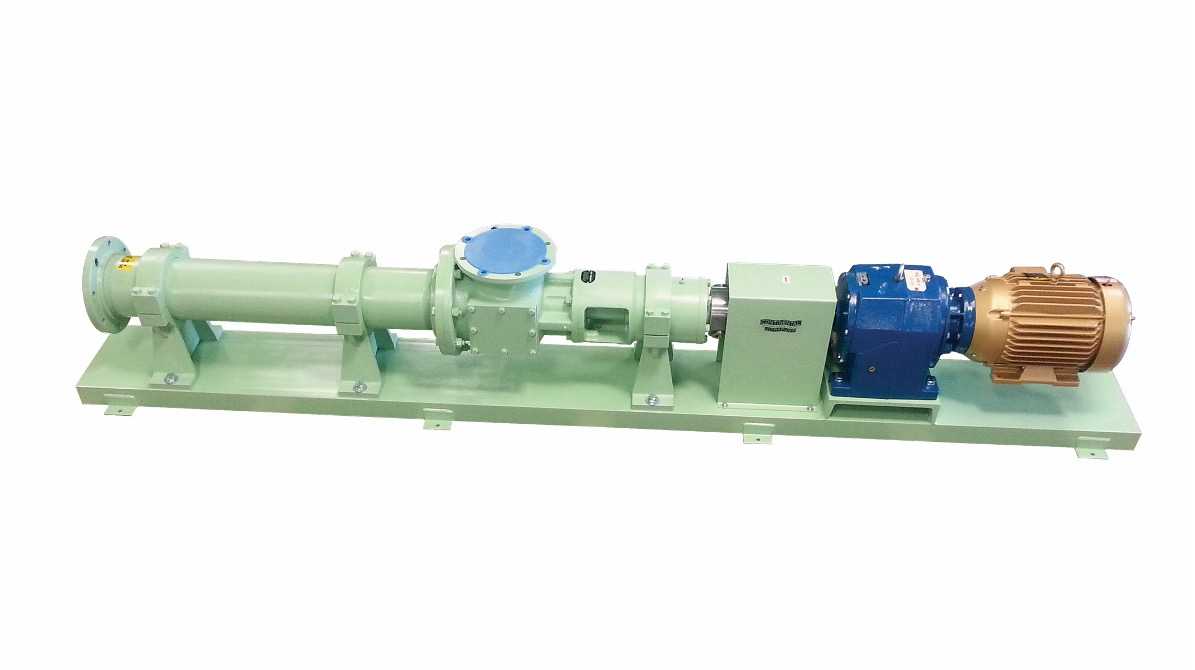

CG1

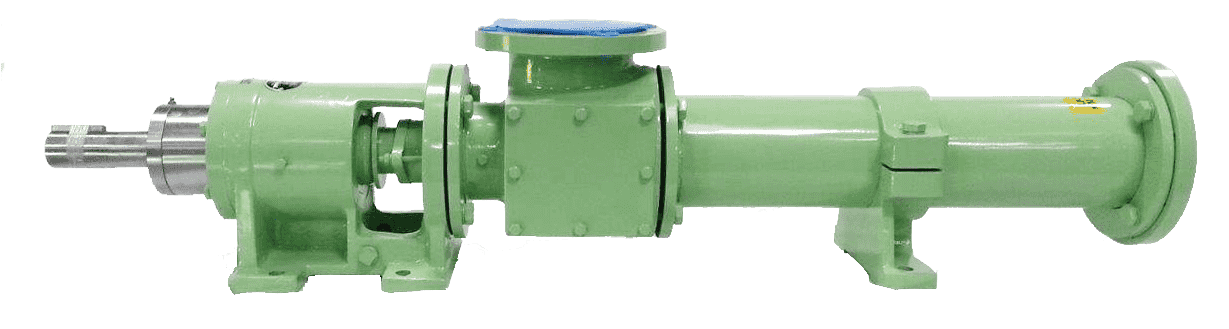

CG3
CG Piggy back base unit
