In modern wastewater management, reliability and efficiency are non-negotiable. Submersible pumps are often the backbone of these systems, operating in the harshest environments to transport sewage, stormwater, and industrial effluent. Their design allows them to be fully submerged in fluid, reducing noise, simplifying installation, and eliminating the need for external priming.
Used across residential, municipal, and industrial settings, submersible pumps provide versatile and cost-effective solutions. But recurring issues such as clogging, seal failure, and undersized motors can lead to significant operational disruptions. To avoid these pitfalls, a deliberate and informed pump selection process is essential. Whether you’re an engineer specifying equipment or a facilities manager overseeing infrastructure upgrades, the right pump can make the difference between daily frustration and uninterrupted service.
Key Components of a Submersible Pump
Understanding a submersible pump’s anatomy can help you evaluate quality, match features to application needs, and anticipate maintenance requirements.
The impeller type (vortex, channel, semi-open, grinder) determines the pump’s solids-handling capabilities. For example, vortex impellers are ideal for solids-laden fluids, while grinder impellers can macerate sewage in municipal lift stations.
Motors must be robust, typically sealed and oil-filled to ensure heat dissipation in submerged conditions. Consider factors like insulation class (e.g., Class F or H), thermal protection, and submersion rating (IP68 or higher).
Materials such as cast iron or stainless steel provide durability and resistance to corrosion. The casing must withstand both physical impacts and chemical attack from aggressive fluids.
Mechanical seals prevent fluid egress. A double seal system, often with an oil chamber in between, adds redundancy and protects against pressure surges or unexpected shaft movement.

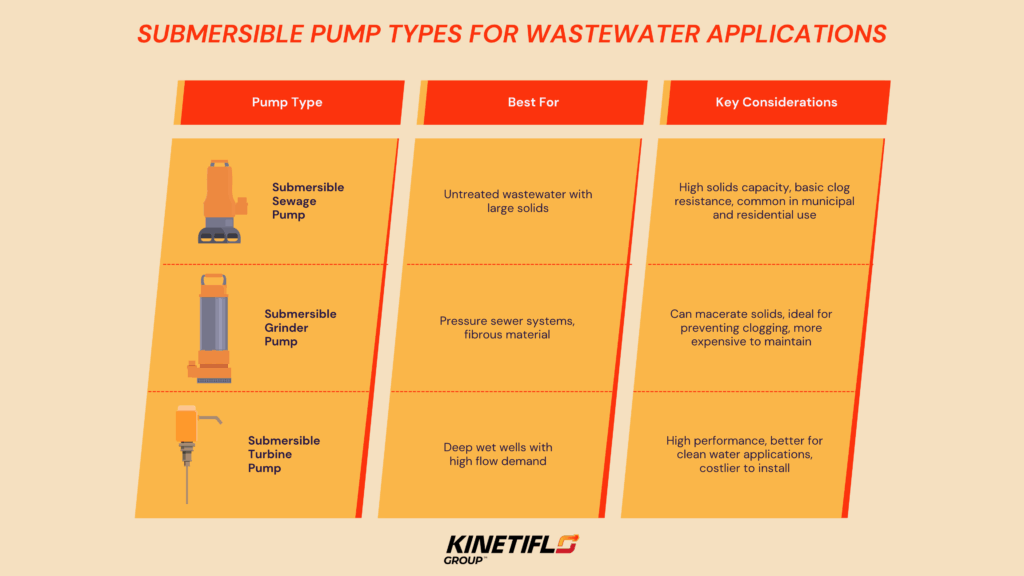

Specific Submersible Pump Types Used in Wastewater Applications
While “submersible pump” typically refers to a certain pump format, it actually spans a wide array of technologies adapted to specific wastewater conditions:
Core Selection Considerations
Selecting a submersible pump without fully understanding your system can lead to costly mismatches. Here are the key criteria that should drive your selection:
Submersible Pump Selection: A Step-by-Step Approach
A structured selection process ensures alignment between pump performance and real-world demands:
Measure or estimate particle size, sludge content, and potential for stringy materials.
Consider the distance, elevation changes, and pipe size to prevent friction loss.
Confirm phase, voltage, and whether backup is available.
Check well dimensions, accessibility, installation method (guide rails, lifting equipment).
Consult pump manufacturers or distributors for curve matching and build material recommendations.
These strategies, when applied consistently, can reduce emergency repairs and increase system reliability.
Submersible Pump Installations: Best Practices
Even the best pump will fail if installed incorrectly. Follow these essential dos and don’ts:
Do:
Don’t:
Case Studies & Examples
Imagine a mid-sized municipality dealing with frequent lift station failures due to wipes, non-dispersibles, and rising solids in the sewer system. Standard submersible sewage pumps, originally installed to handle average waste, begin to clog weekly, triggering alarms, requiring manual cleanouts, and consuming valuable staff time with emergency maintenance.
If your system faced this scenario, here’s how you could follow a structured assessment and pump selection process to address the challenge:
1. Define the Duty Point: Analyze peak inflows and head pressure. For example, a duty point of 200 GPM with a TDH of 35 feet might be typical for a municipal lift station.
2. Determine Solids Content: Evaluate wastewater composition. If wipes, hygiene products, and other fibrous solids are frequent, you need better solids-handling capability.
3. Review Infrastructure: Inspect discharge piping, valves, and mounting hardware. You may need updated check valves or guide rail systems for efficient servicing.
4. Verify Power Supply: Confirm compatibility with available power (e.g., 480V three-phase) and potential for variable frequency drive (VFD) integration.
5. Assess Site Conditions: Tight or deep wet wells require compact, submersible designs with safe lifting mechanisms and minimal maintenance complexity.
6. Consult with Experts: Engage a trusted partner like Kinetiflo to compare performance curves, evaluate impeller types, and validate seal configurations.
Recommended Solutions:
Expected Benefits:
This hypothetical case illustrates how applying a methodical, data-driven approach to pump selection can transform reactive maintenance headaches into streamlined, proactive system performance.
The Right Pump Pays Dividends
In wastewater management, equipment resilience and consistency matter. A well-selected submersible pump ensures seamless operation, protects infrastructure, and saves thousands of dollars in reactive maintenance. By understanding system needs, evaluating pump construction, and applying best practices in installation, you empower your team and safeguard your operations.
